WIRELESS
Working Modes Range Extender/Access Point
HARDWARE FEATURES
Standards and Protocols IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Plug Type EU, UK, US, AU
Interface 1 x 10/100M Ethernet Port (RJ45)
Ports 1 x 10/100Mbps Ethernet Port (RJ45)
Button RE (Range Extender) Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption About 6.5W
Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna 3 x internal
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Working Modes Range Extender/Access Point
Reception Sensitivity 2.4G:
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G:
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M：-90dBm@10% PER
Transmit Power < 20 dBm (EIRP)
Wireless Modes Range Extender/Access Point
Wireless Functions WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function
Wireless Security 64/128/152-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power < 20 dBm (EIRP)
Mesh Technology EasyMesh
OTHERS
Certification CE, FCC, RoHS

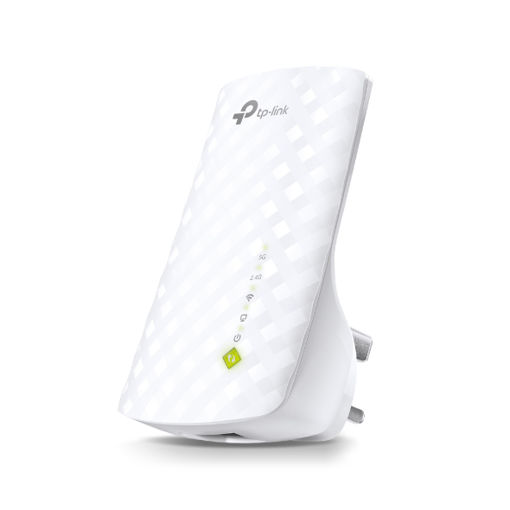

Package Contents AC750 Wi-Fi Range Extender RE200
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
